Product Overview

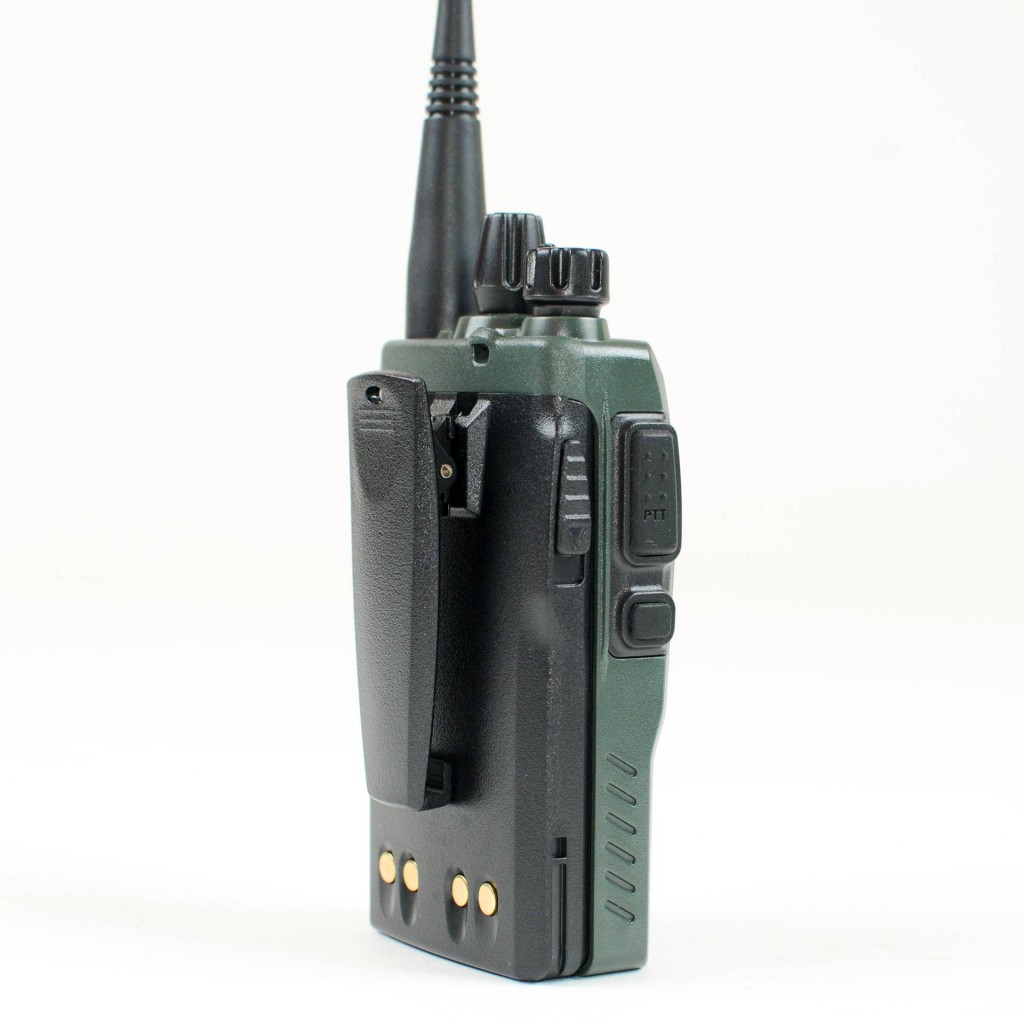

This Puxing PX-888 Radio Transceiver can be used for both amateur and commercial applications. The programmable channel shift allows for easy communication with repeaters.
[Key Features]
* Memory channel capacity: 128
* Output power: 4-5W
* Wide: 25kHz; Narrow: 12.5kHz spacing programmable at each channel
* 1200mah Li-ion battery;
* Input frequency by using keypad;
* VOX gain level (1-9);
* Scan function with all channels scan and priority channel scan;
* three color LCD backlight display;
* Emergency ANI call ;
* Programmable by PC;
* Adjust power Hi/Low by keypad or PC software;
* Adjust squelch 0-9;
* Busy channel lockout;
* Keypad lock
* Time-out Timer
* Reverse frequency function;
* Channel step 5, 10, 6.25, 12.5 and 25K;
* Receive FM radio;
* Voice annunciation;
* Hi: 4 to 5W, Low: 0.5 to 1W Output power;
* Built-in 50 CTCSS and 104 DCS;
* Various frequency band available
* PTT ID display
* PC software disable frequency input
* Kill and unkill by DTMF code
[Specifications]
* Frequency Range 138-174Mhz
* Working Temperate 20-50℃
* Operating Voltage DC 7.2V
* Operate Mode Simplex or Semi-duplex
* Dimension 100mm-5mm-2mm (Not included Antenna)
* Weight 220g (Including battery)
* Antenna impedance 50
[Transmitter]
* Frequency Stability：5PPM
* Output Power：4W
* Max Frequency Deviation：5KHz
* Audio Distortion：3%
* Modulation Character +3dB-3dB
* Adjacent Channel Power >=65dB
* Spurious Radiation <=7.5UW(-36db for CE)
* Occupied Bandwidth <=16KHz
[Receiver]
* RF Sensitivity ：0.2UV(12DB SINAD)
* Audio Distortion ：3%
* Audio Response +2dB-10dB
* Adjacent Channel Selectivity >=60dB
* Intermodulation Rejection >=60dB
* Blocking >=80dB
Product Information
- Brand: PUXING
- Product Code: PX-RDO-888K
- Availability: In Stock
